Item# SC-8

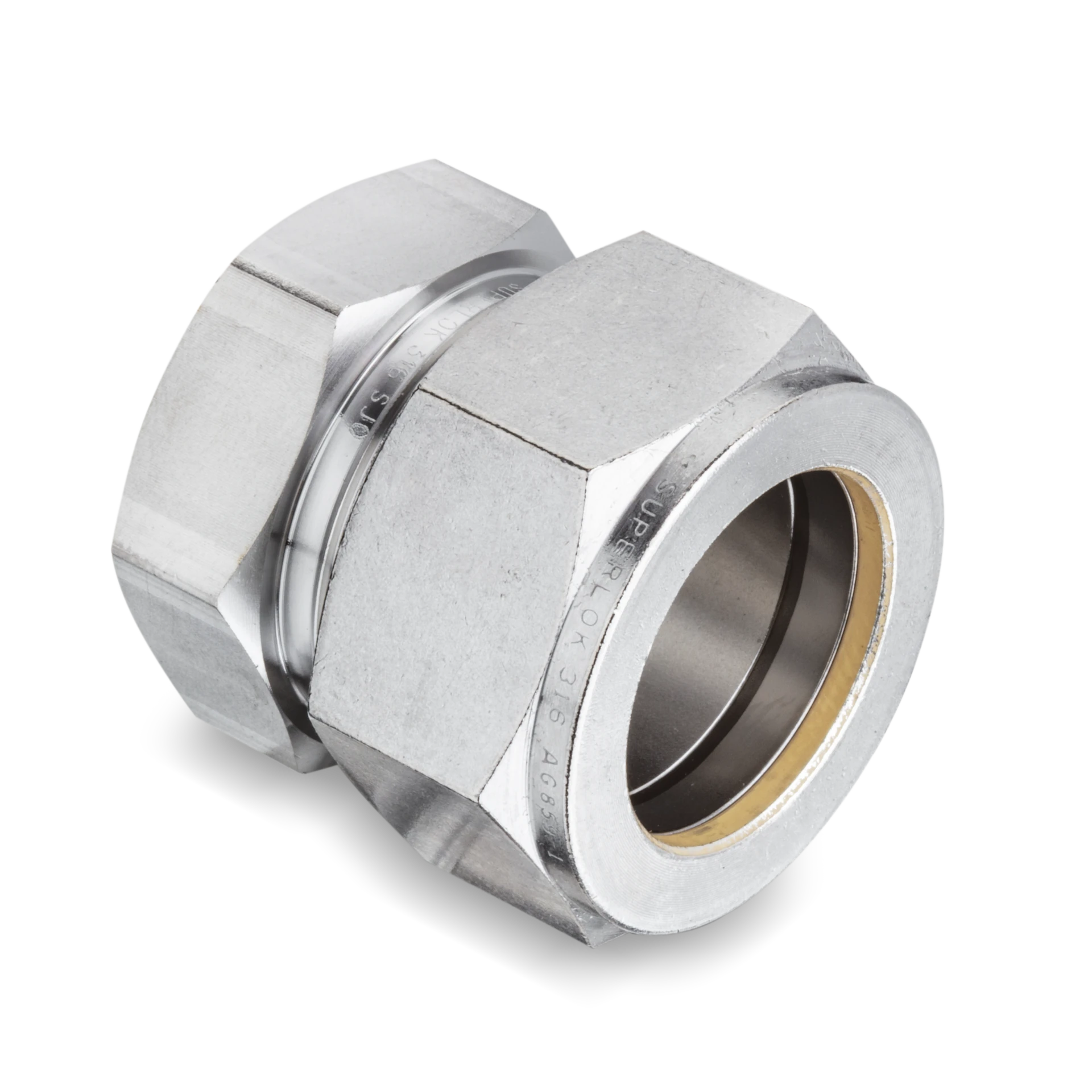

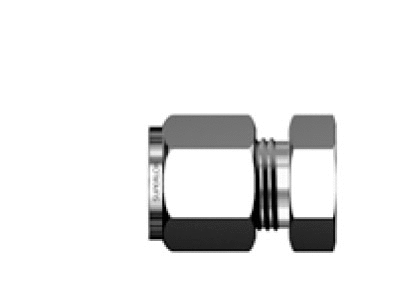

SC 1/2 in. Tube Outside Diameter D Fitting Cap

Downloads
SC-8
SC TUBE FITTING
SC Fitting Caps - 2
Specifications
Part Number
SC-8
Brand
Superlok®
Material
316 Stainless Steel
Description
SC 1/2 in. Tube Outside Diameter D Fitting Cap
Inch/Metric
Inch

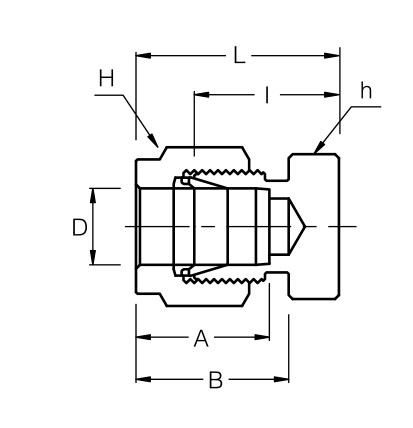

Dimensions
Dimension A
22.86 mm
Dimension B
21.84 mm
Dimension I
19.05 mm
Dimension L
29.21 mm
Tube Outside Diameter D
1/2 in
mm
Width Across Flats H
7/8 in
mm
Width Across Flats h
13/16 in
mm
