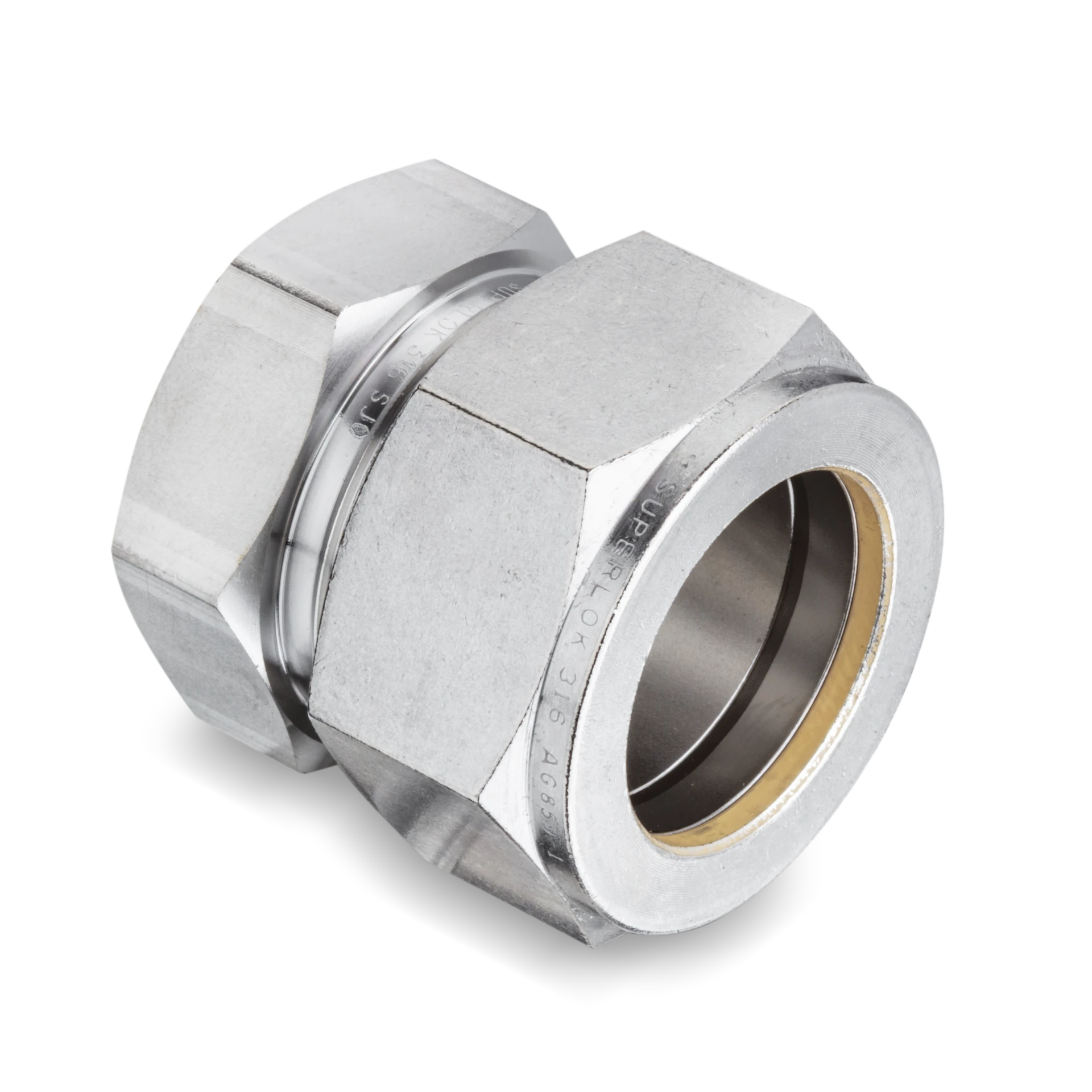

13 Items in SC Fitting Caps
side-scroll to see full table

Part# SC-1 SC-2 SC-4 SC-6 SC-6M SC-8 SC-8M SC-10 SC-10M SC-12 SC-12M SC-14 SC-14
Information
Type
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Fitting Cap
Part Number
SC-1
SC-2
SC-4
SC-6
SC-6M
SC-8
SC-8M
SC-10
SC-10M
SC-12
SC-12M
SC-14
SC-14
Dimensions
Dimension A
8.63mm
12.70mm
15.24mm
16.76mm
15.3mm
22.86mm
16.2mm
24.38mm
17.2mm
24.38mm
22.8mm
25.90mm
25.90mm
Dimension B
10.92mm
15.24mm
17.78mm
19.30mm
17.7mm
21.84mm
18.6mm
21.84mm
19.5mm
21.84mm
22.0mm
21.84mm
21.84mm
Dimension I
11.20mm
13.46mm
16.00mm
18.28mm
15.7mm
19.05mm
17.0mm
19.81mm
19.0mm
23.33mm
19.0mm
23.87mm
23.87mm
Dimension L
14.98mm
20.06mm
23.36mm
25.65mm
23.1mm
29.21mm
24.5mm
29.97mm
26.6mm
33.49mm
29.1mm
34.03mm
34.03mm
Tube Outside Diameter D
1/16in
- mm
1/8in
- mm
1/4in
- mm
3/8in
- mm
- in
6mm
1/2in
- mm
- in
8mm
5/8in
- mm
- in
10mm
3/4in
- mm
- in
12mm
7/8in
- mm
7/8in
- mm
Width Across Flats H
5/16in
- mm
7/16in
- mm
9/16in
- mm
11/16in
- mm
- in
14mm
7/8in
- mm
- in
16mm
1in
- mm
- in
19mm
1-1/8in
- mm
- in
22mm
1-1/4in
- mm
1-1/4in
- mm
Width Across Flats h
5/16in
- mm
7/16in
- mm
1/2in
- mm
5/8in
- mm
- in
14mm
13/16in
- mm
- in
15mm
15/16in
- mm
- in
18mm
1-1/16in
- mm
- in
22mm
1-3/16in
- mm
1-3/16in
- mm
Specifications
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
SC 1/16 in. Tube Outside Diameter D Fitting Cap
SC 1/8 in. Tube Outside Diameter D Fitting Cap
SC 1/4 in. Tube Outside Diameter D Fitting Cap
SC 3/8 in. Tube Outside Diameter D Fitting Cap
SC 6 mm Tube Outside Diameter D Fitting Cap
SC 1/2 in. Tube Outside Diameter D Fitting Cap
SC 8 mm Tube Outside Diameter D Fitting Cap
SC 5/8 in. Tube Outside Diameter D Fitting Cap
SC 10 mm Tube Outside Diameter D Fitting Cap
SC 3/4 in. Tube Outside Diameter D Fitting Cap
SC 12 mm Tube Outside Diameter D Fitting Cap
SC 7/8 in. Tube Outside Diameter D Fitting Cap
SC 7/8 in. Tube Outside Diameter D Fitting Cap
Inch/Metric
Inch
Inch
Inch
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Inch
