Item# SFQC2B-S6

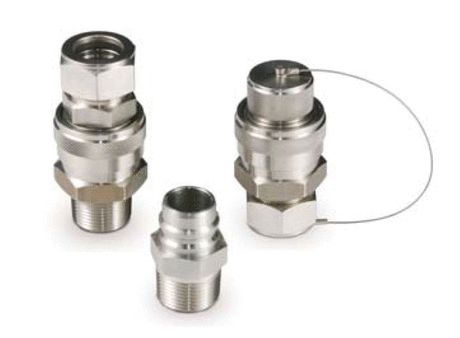

SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Body

Proven ball – lock mechanism provides positive connection. Simple push – pull action to connect and disconnect lines – no tools required. Compact coupling offers full flow without orifice restrictions. O-ring is easily replaced without disassembling

SFQC2B-S6
SFQC Full Flow Quick Connect Bodies - 2
Specifications
Part Number
SFQC2B-S6
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Description
SFQC 1/4 in. x 3/8 in. Tube Outside Diameter Full Flow Quick Connect Body
End Type
Dimensions
Dimension A
46.0 mm
Dimension D
22.2 mm
Dimension F
17.5 mm
End Size
44263 in
Insertion Depth
0.78 in
19.8 mm
Orifice [Min]
7.1 mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature
6.8 bar
100 psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature
413 bar
600 psig
Pressure Rating Brass with NBR O-Ring at 250 (121 ºC) Temperature
6.8 bar
100 psig
Pressure Rating Brass with Nitrile Butadiene Rubber (NBR) O-Ring at 70 (20 ºC) Temperature
275 bar
4000 psig

Part#

CAD Download Part #
