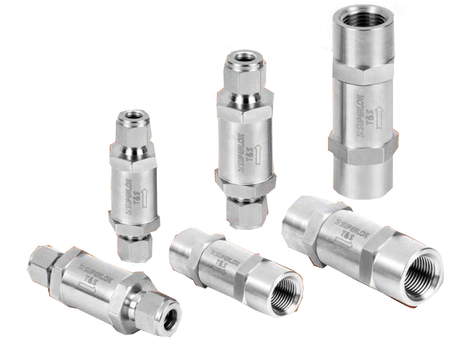

Item# SIF3S6-60
SIF 3/8 in. Outside Diameter, 60 Micron Inlet Inline Filter
Remove system particulate contaminants. Inline filters are for use where space is limited. Replaceable filter element. Maximum operating pressure : 3000 psi at 70 ºF (21 ºC) Operating temperature range : -20 ºF to 900 ºF (-28 ºC to 482 ºC ) with SS316 body 1/8 to 1/2 in. and 3 to 10 mm end connections.
Specifications
Part Number
SIF3S6-60
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel
Series
SIF
Description
SIF 3/8 in. Outside Diameter, 60 Micron Inlet Inline Filter
Includes
SIF3S6-60
Dimensions
Air Flow at Inlet Pressure 10 psig (0.34 bar)
2.4 ft³/min
Air Flow at Inlet Pressure 15 psig (1.0 bar)
15 ft³/min
Air Flow at Inlet Pressure 5 psig (0.34 bar)
5.1 ft³/min
Dimension H
25.4 mm
Dimension I
43.2 mm
Dimension L
81.8 mm
Effective Filtration Area
2 in²
1280 mm²
End Connection
Inlet
Outlet
Inlet Size
44263 in
Nominal Size
60 µm
Operating Pressure [Max]
0.34,0.68,1.0 bar
5,10,15 psig
Orifice
7.1 mm
Outlet Size
44263 in
Pore Size Range
50 to 75 µm
Pressure Drop
0.68,3.4,6.8 bar
10,50,100 psig
Water Flow at Pressure Drop 10 psig (0.68 bar)
0.26700000000000002 ft³/min
Water Flow at Pressure Drop 100 psig (6.8 bar)
1.337 ft³/min
Water Flow at Pressure Drop 50 psig (3.4 bar)
0.89600000000000002 ft³/min
Working Pressure at -20ºF (-28 ºC) to 100 (37 ºC) Temperature
172 bar
2500 psig
Working Pressure at 200 (93 ºC) Temperature
148 bar
2150 psig
Working Pressure at 300 (148 ºC) Temperature
133 bar
1940 psig
Working Pressure at 400 (204 ºC) Temperature
122 bar
1780 psig
Working Pressure at 500 (260 ºC) Temperature
114 bar
1660 psig
Working Pressure at 600 (315 ºC) Temperature
107 bar
1560 psig
Working Pressure at 650 (343 ºC) Temperature
106 bar
1540 psig
Working Pressure at 700 (371 ºC) Temperature
103 bar
1500 psig
Working Pressure at 750 (398 ºC) Temperature
100 bar
1460 psig
Working Pressure at 800 (426 ºC) Temperature
99.2 bar
1440 psig
Working Pressure at 850 (454 ºC) Temperature
97.1 bar
1410 psig
Working Pressure at 900 (482 ºC) Temperature
93.7 bar
1360 psig
