Item# SOSC 4-4U

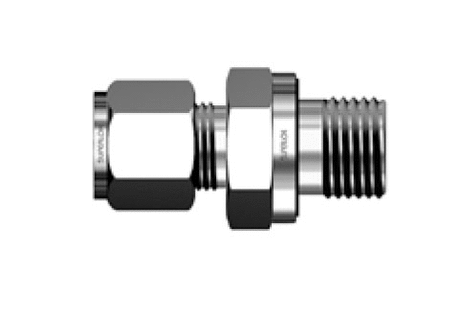

SOSC 1/4 in. Tube Outside Diameter D x 7/16-20 Male Society of Automotive Engineers (SAE) Straight Thread O-Seal Connector

SOSC 4-4U
SOSC Male Society of Automotive Engineers (SAE) O-Seal Connectors - 2
Specifications
Part Number
SOSC 4-4U
Brand
Superlok®
Inch/Metric
Inch
Series
SOSC
Description
SOSC 1/4 in. Tube Outside Diameter D x 7/16-20 Male Society of Automotive Engineers (SAE) Straight Thread O-Seal Connector
End Size
44028
O-Ring Uniform Size Number
-111

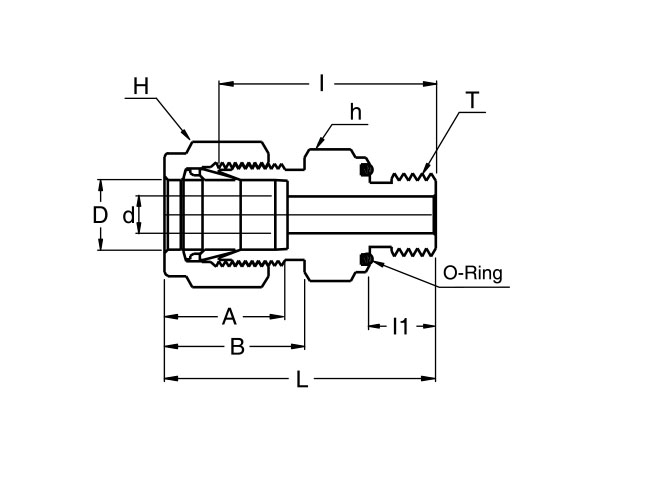

Dimensions
Dimension A
15.24 mm
Dimension B
17.78 mm
Dimension I
30.98 mm
Dimension I1
10.41 mm
Dimension L
38.35 mm
Dimension d [Min]
4.82 mm
Tube Outside Diameter
44200 in
Width Across Flats H
9/16 in
Width Across Flats h
3/4 in
