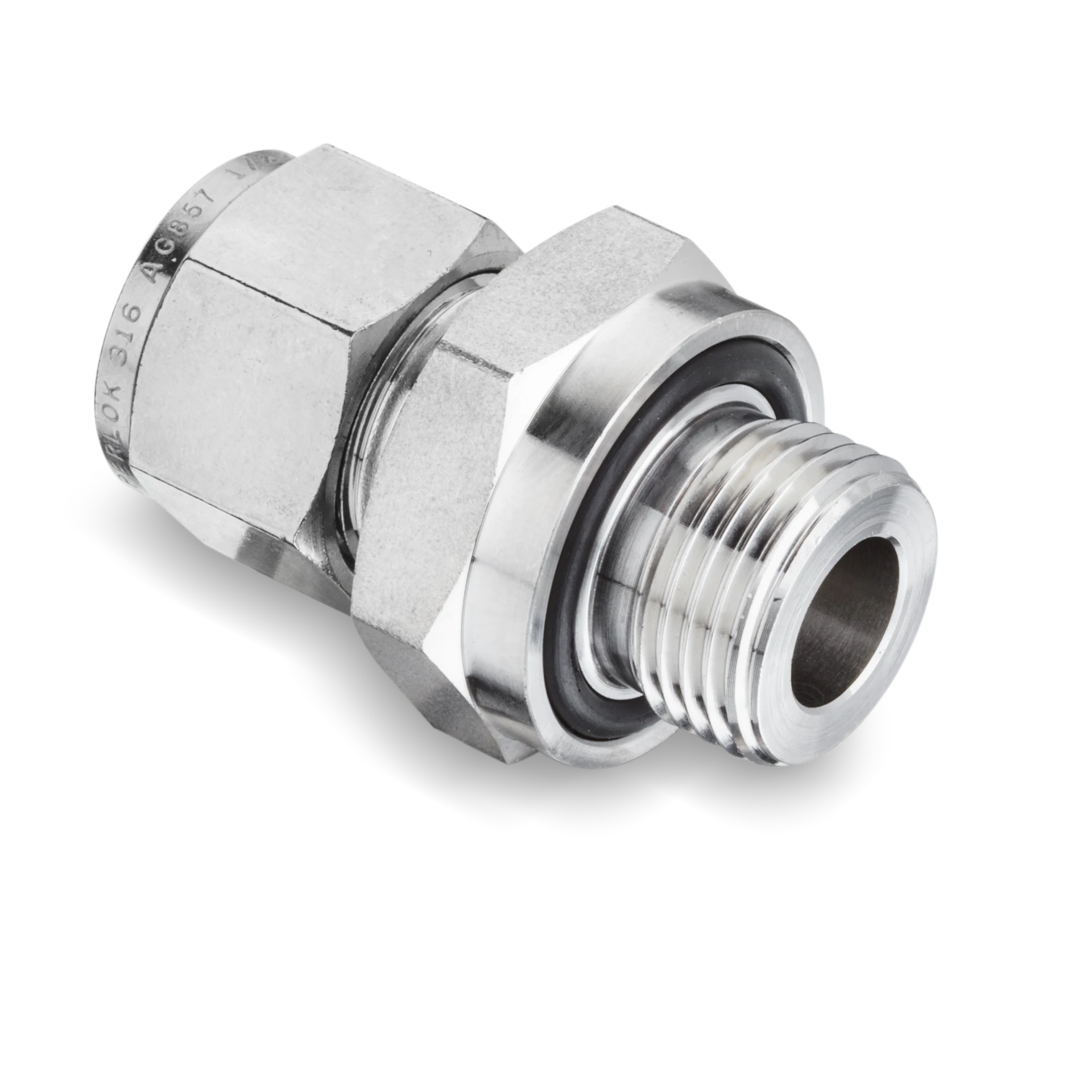

SOSC Male Society of Automotive Engineers (SAE) O-Seal Connectors

SOSC Male Society of Automotive Engineers (SAE) O-Seal Connectors
SOSC Male Society of Automotive Engineers (SAE) O-Seal Connectors - 2
2 Items in SOSC Male Society of Automotive Engineers (SAE) O-Seal Connectors
side-scroll to see full table

Part# SOSC 4-4U SOSC 4-4U
Information
Type
Male Connector
Male Connector
Part Number
SOSC 4-4U
SOSC 4-4U
Dimensions
Dimension A
15.24mm
15.24mm
Dimension B
17.78mm
17.78mm
Dimension I
30.98mm
30.98mm
Dimension I1
10.41mm
10.41mm
Dimension L
38.35mm
38.35mm
Dimension d [Min]
4.82mm
4.82mm
Tube Outside Diameter
44200in
44200in
Width Across Flats H
9/16in
9/16in
Width Across Flats h
3/4in
3/4in
Specifications
Inch/Metric
Inch
Inch
Series
SOSC
SOSC
Description
SOSC 1/4 in. Tube Outside Diameter D x 7/16-20 Male Society of Automotive Engineers (SAE) Straight Thread O-Seal Connector
SOSC 1/4 in. Tube Outside Diameter D x 7/16-20 Male Society of Automotive Engineers (SAE) Straight Thread O-Seal Connector
End Size
44028
44028
O-Ring Uniform Size Number
-111
-111
