Item# SPUV-M-4N

SPUV 1/4 in. Male National Pipe Taper (MNPT) Inlet Purge Valve

Compact for convenient installation. Vent hole bleeds excess liquid or gas from system lines. Cap is crimped to valve body to prevent accidental disassembly. Variety of end connections; Superlok® tube fittings, NPT and ISO threads.

SPUV-M-4N

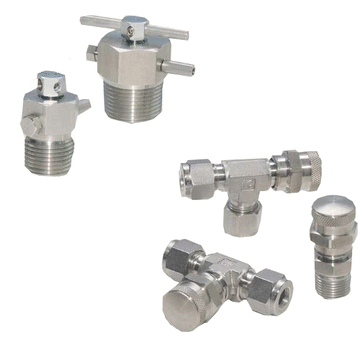

Purge and Bleed Valves - 2
SPUV Purge Valves - 4
Specifications
Part Number
SPUV-M-4N
Brand
Superlok®
Body Material
316 Stainless Steel
Inch/Metric
Inch
Description
SPUV 1/4 in. Male National Pipe Taper (MNPT) Inlet Purge Valve
End Type
Male National Pipe Thread (MNPT)

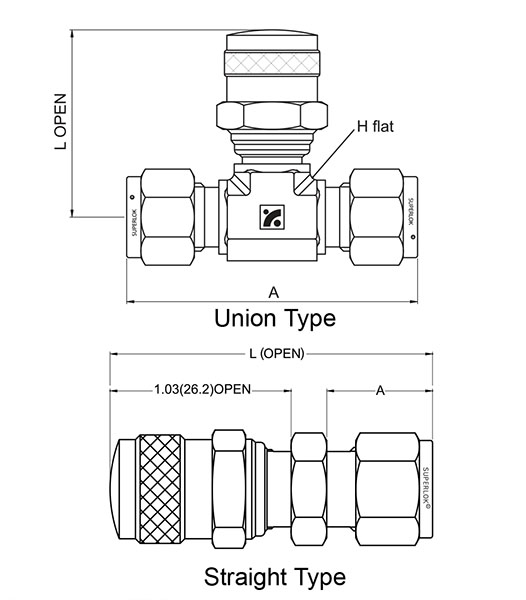

Dimensions
Dimension A
0.56 in
14.2 mm
Dimension H
in
mm
Dimension L
1.81 in
46.0 mm
End Size
44200 mm
Pressure Rating 316 Stainless Steel at -65 (-53 ºC) to 100 (37 ºC)
275 bar
Pressure Rating at 100ºF (38ºC )
27 bar
4000 psig
Temperature Rating
-65 to 600 ºC
-54 to 315 ºF
Working Pressure at -65 (-53 ºC) to 100 º F(37 ºC) Temperature
4000 psig
Working Pressure at 150 (65 ºC) Temperature
256 bar
3720 psig
Working Pressure at 200 (93 ºC) Temperature
337 bar
3440 psig
Working Pressure at 300 (148 ºC) Temperature
213 bar
3105 psig
Working Pressure at 350 (176 ºC) Temperature
2975 psig
Working Pressure at 350(176 ºC) Temperature
204 bar
Working Pressure at 400 (204 ºC) Temperature
196 bar
850 psig
Working Pressure at 450 (232 ºC) Temperature
189 bar
2750 psig
Working Pressure at 500 (260 ºC) Temperature
182 bar
2650 psig
Working Pressure at 600 (315 ºC) Temperature
172 bar
2500 psig
