Item# SQC1-BP

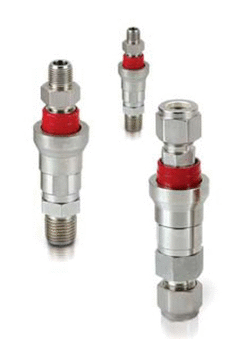

SQC Quick Connect Body Protectors

Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.

Downloads
SQC1-BP
Specifications
Part Number
SQC1-BP
Brand
Superlok®
Description
SQC Quick Connect Body Protectors
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Dimensions
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature
17.2 bar
250 psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature
206 bar
3000 psig
