Item# SQC2P-S6-SO

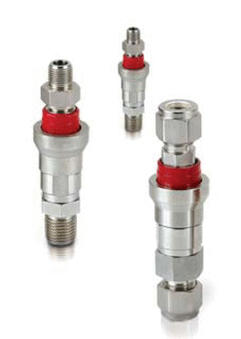

SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Stem (SESO)

Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.

Downloads
SQC2P-S6-SO
SQC Quick Connect Bodies - 2
Specifications
Part Number
SQC2P-S6-SO
Brand
Superlok®
Inch/Metric
Inch
Material
316 Stainless Steel, Brass
Plug Series
SO
Cv Coefficient
1.5
Description
SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Stem (SESO)
End Type
Dimensions
Dimension F
19.1 mm
End Size
44263 in
Flow [Max]
6 gpm
22 L/min
Insertion Depth
1.18 in
30.0 mm
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature
17.2 bar
250 psig
Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature
103 bar
1500 psig
Spillage
1.0 cm³
