Item# SRPV2-MF-8N

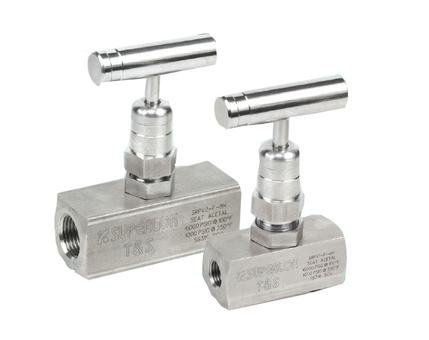

SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve

Non-rotating stem tip Straight-through orifice for maximum flow Stem dust seal protects threads from external contamination Replaceable seals, seat and stem tip Panel mounting option Gauge port option

SRPV2-MF-8N
Specifications
Part Number
SRPV2-MF-8N
Brand
Superlok®
Body Material
316 Stainless Steel
Inch/Metric
Inch
Series
SRVP
Cv Coefficient
1.8
Description
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve
End Type
Male National Pipe Thread (MNPT)
End Type 2
Female National Pipe Thread (FNPT)
Dimensions
Dimension A
103.1 mm
Dimension B
61.1 mm
Dimension B1
42.0 mm
Dimension C
16.0 mm
Dimension D
96.9 mm
Dimension E
60.0 mm
End Size
44198 mm
End Size 2
44198 mm
Orifice
6.4 mm
Pressure Rating Acetal at -20 to 100 (-28 to 37 ºC) Temperature
413 bar
6000 psig
Pressure Rating Acetal at 200 (93 ºC) Temperature
182 bar
2650 psig
Pressure Rating Acetal at 250 (121 ºC) Temperature
68.9 bar
1000 psig
Pressure [Max]
413 bar
6000 psig
Temperature Rating for Flurocarbon
ºC
ºF
