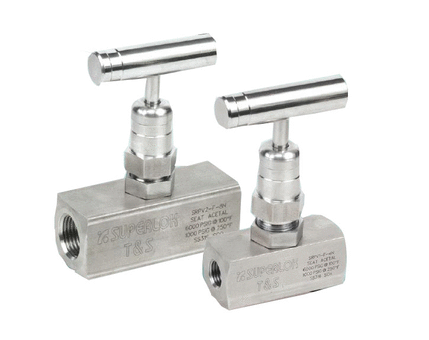

SRPV Rising Plug Valves
Non-rotating stem tip Straight-through orifice for maximum flow Stem dust seal protects threads from external contamination Replaceable seals, seat and stem tip Panel mounting option Gauge port option
Downloads
4 Items in SRPV Rising Plug Valves
side-scroll to see full table
 |
|
|
| |
| Part# | SRPV1-F-4N | SRPV2-F-8N | SRPV2-MF-8N | SRPV2-MF-8N |
| Information | ||||
| Type |
Plug Valve |
Plug Valve |
Plug Valve |
Plug Valve |
| Part Number |
SRPV1-F-4N |
SRPV2-F-8N |
SRPV2-MF-8N |
SRPV2-MF-8N |
| Dimensions | ||||

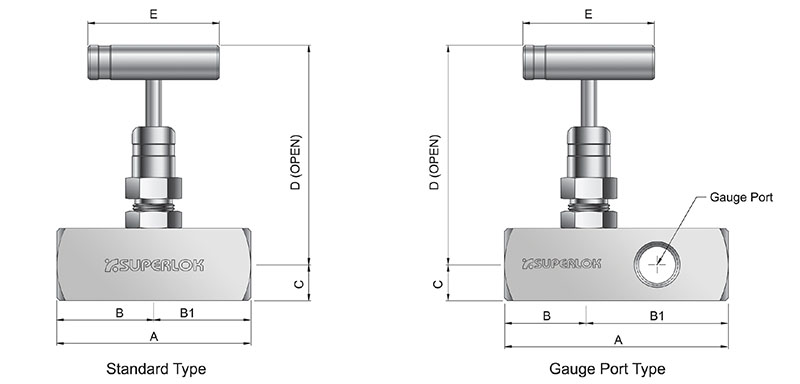

| Dimension A |
- mm |
84.0mm |
103.1mm |
103.1mm |
| Dimension B |
- mm |
42.0mm |
61.1mm |
61.1mm |
| Dimension B1 |
- mm |
42.0mm |
42.0mm |
42.0mm |
| Dimension C |
- mm |
16.0mm |
16.0mm |
16.0mm |
| Dimension D |
- mm |
96.9mm |
96.9mm |
96.9mm |
| Dimension E |
- mm |
60.0mm |
60.0mm |
60.0mm |
| End Size |
- mm |
44198mm |
44198mm |
44198mm |
| End Size 2 |
- mm |
44198mm |
44198mm |
44198mm |
| Orifice |
- mm |
6.4mm |
6.4mm |
6.4mm |
| Pressure Rating Acetal at -20 to 100 (-28 to 37 ºC) Temperature |
413bar
6000psig |
413bar
6000psig |
413bar
6000psig |
413bar
6000psig |
| Pressure Rating Acetal at 200 (93 ºC) Temperature |
182bar
2650psig |
182bar
2650psig |
182bar
2650psig |
182bar
2650psig |
| Pressure Rating Acetal at 250 (121 ºC) Temperature |
68.9bar
1000psig |
68.9bar
1000psig |
68.9bar
1000psig |
68.9bar
1000psig |
| Pressure [Max] |
413bar
6000psig |
413bar
6000psig |
413bar
6000psig |
413bar
6000psig |
| Temperature Rating for Flurocarbon |
-28 to 204ºC
-20 to 400ºF |
-28 to 204ºC
-20 to 400ºF |
- ºC
- ºF |
- ºC
- ºF |
| Specifications | ||||
| Body Material |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Inch/Metric |
Inch |
Inch |
Inch |
Inch |
| Series |
SRVP |
SRVP |
SRVP |
SRVP |
| Cv Coefficient |
- |
1.8 |
1.8 |
1.8 |
| Description |
SRPV 1/4 in. Female National Pipe Taper (FNPT), Viton Stem Seal, Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve |
SRPV 1/2 in. Female National Pipe Taper (FNPT), Viton Stem Seal, Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve |
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve |
SRPV 1/2 in. Male National Pipe Taper (MNPT) x 1/2 in. Female National Pipe Taper (FNPT), Acetal Seat, 6000 psi Pressure Rating Inlet Rising Plug Valve |
| End Type |
- |
Female National Pipe Thread (FNPT) |
Male National Pipe Thread (MNPT) |
Male National Pipe Thread (MNPT) |
| End Type 2 |
- |
Female National Pipe Thread (FNPT) |
Female National Pipe Thread (FNPT) |
Female National Pipe Thread (FNPT) |
