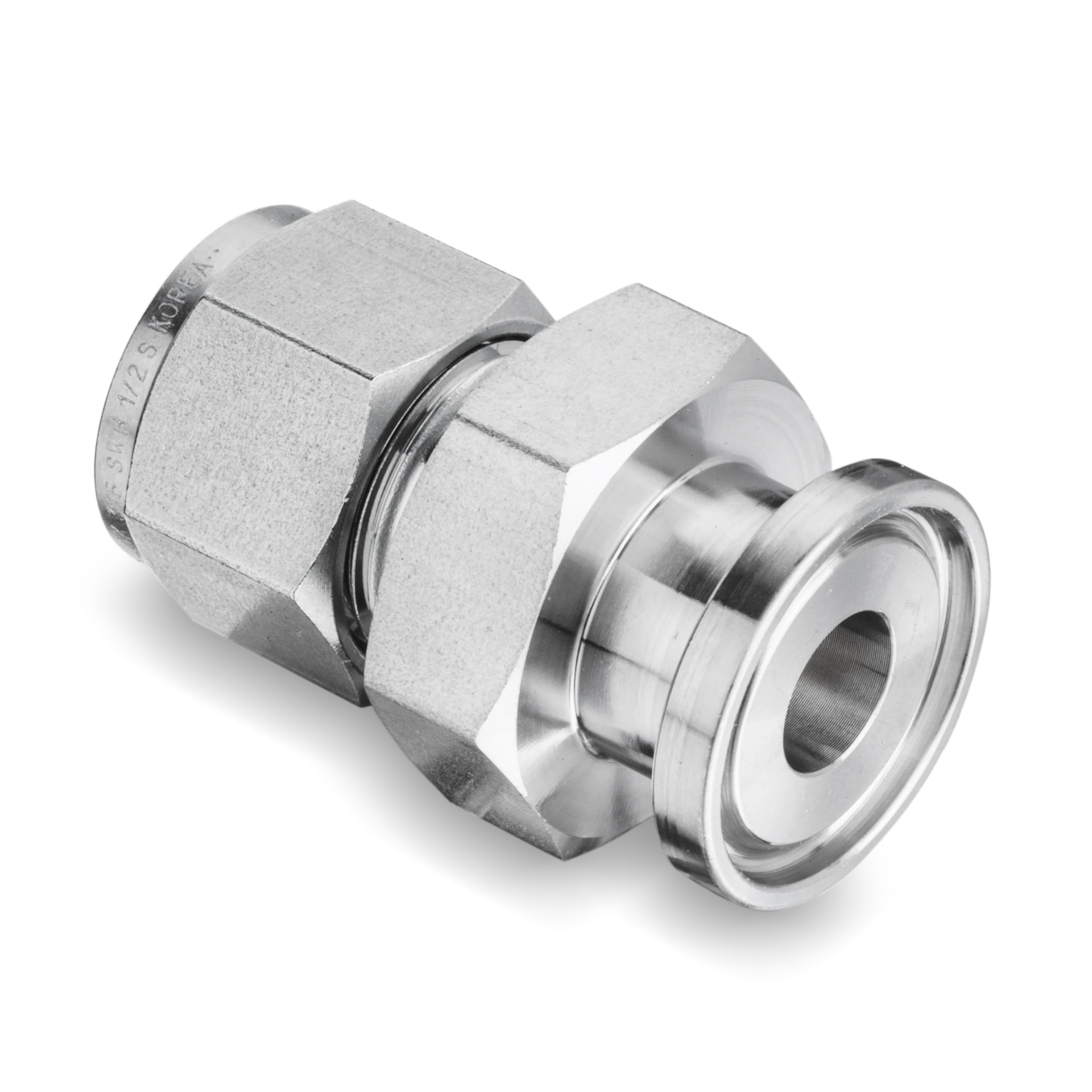

Item# SSFA-6-12SA

Downloads

BMT Sanitry Flange Adapters (SSFA Series) 4p_2024 0319

Request a Quote

Call Us (805) 658-2043

Sanitry Flange Adapters 01-1

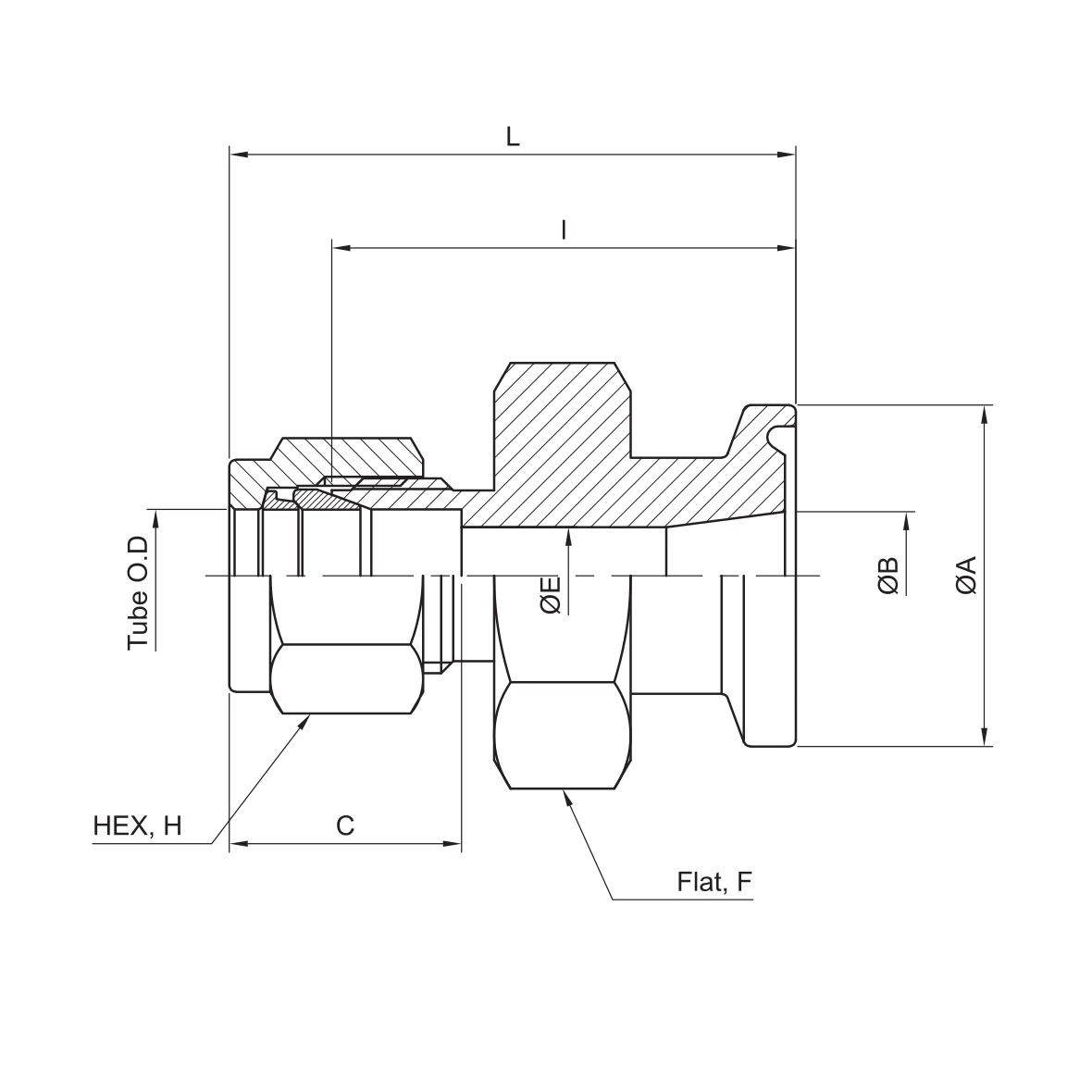

ssfa-sanitry-flange-adapters-drawing

Sanitry Flange Adapters 01-2

Sanitry Flange Adapters 02-1

Sanitry Flange Adapters 02-2

Specifications

Part Number

SSFA-6-12SA

Brand

Superlok®

Body Material

316 Stainless Steel

Description

Sanitary Flange Adapters

Sanitary Flange Size

3/4

Tube O.D. D, inch

3/8

Dimensions

Dimension A

25.0 mm

Dimension B

15.75 mm

Dimension C

17.0 mm

Dimension E

7.1 mm

Dimension F, Falt

27.0 mm

Dimension H, Hex

17.5 mm

Dimension I

34.0 mm

Dimension L

41.5 mm
