Item# SUNV1-S-4

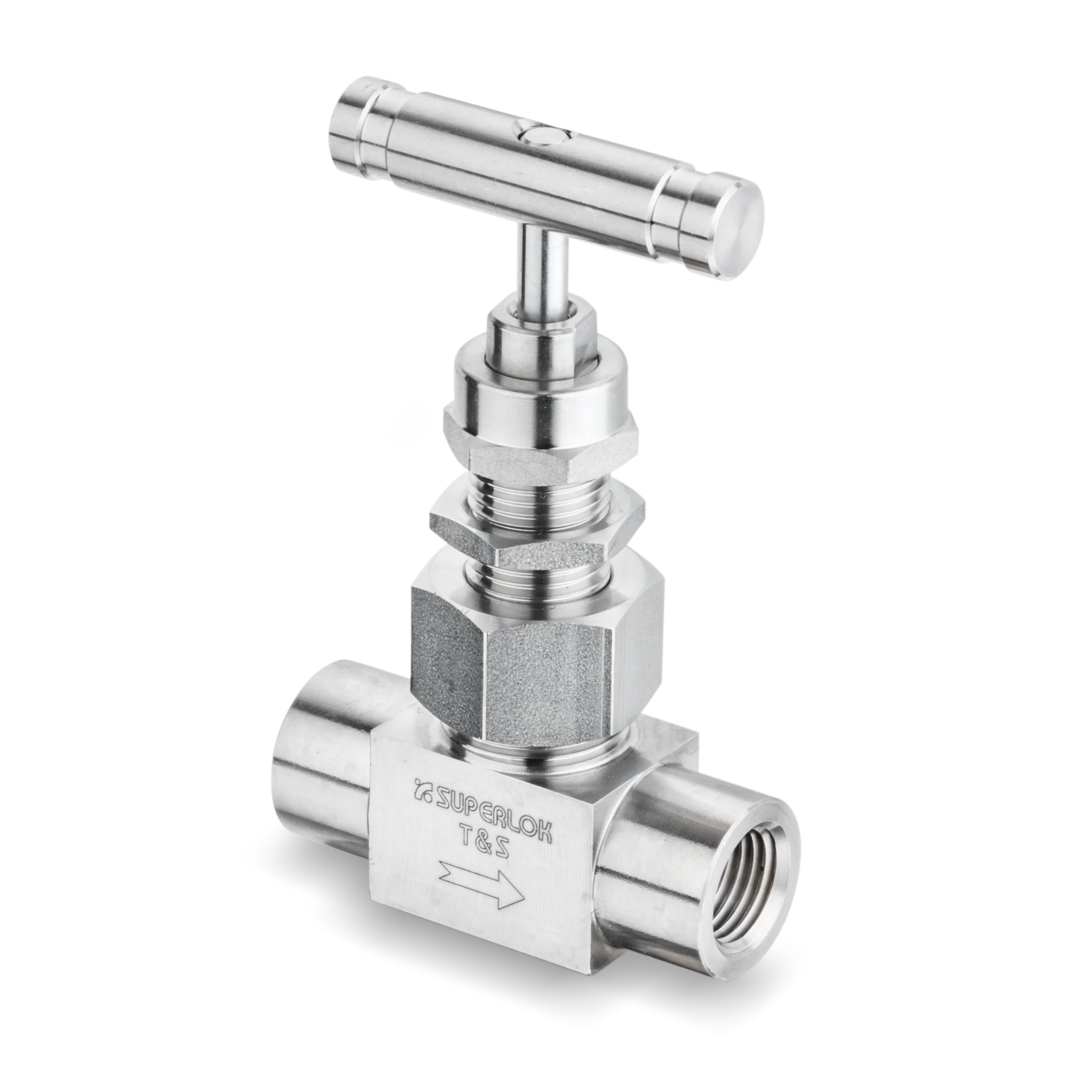

SUNV 1/4 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve

Compact design Low operating torques Panel mountable Straight and angle flow patterns Non rotating vee stem tip Three stem type are available

SUNV1-S-4

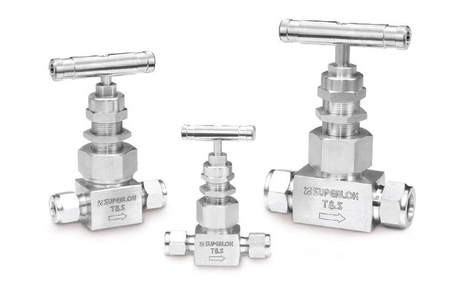

SUNV Union Bonnet Needle Valves - 2
SUNV Union Bonnet Needle Valves - 4
Specifications
Part Number
SUNV1-S-4
Brand
Superlok®
Body Material
316 Stainless Steel, Alloy 400
Inch/Metric
Inch
Series
SUNV
Cv Coefficient
0.35
Description
SUNV 1/4 in. Outside Diameter, Polytetrafluoroethylene (PTFE) Packing, 6000 psi Pressure Rating Union Bonnet Needle Valve
End Type
End Type 2

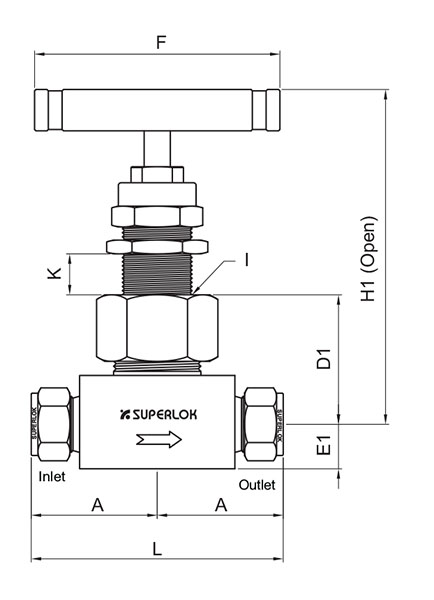

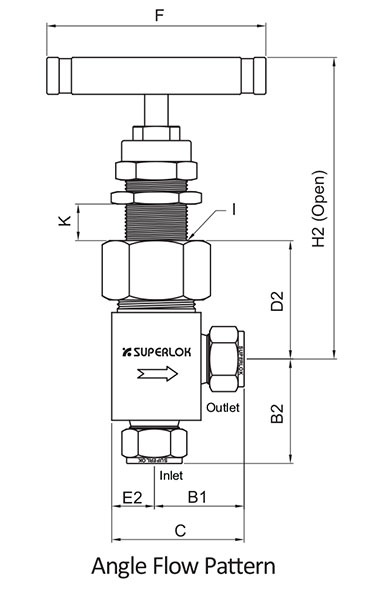

Dimensions
Dimension A
31.0 mm
Dimension B1
29.4 mm
Dimension B2
37.3 mm
Dimension C
38.9 mm
Dimension D1
27.8 mm
Dimension D2
27.8 mm
Dimension E1
9.9 mm
Dimension E2
9.9 mm
Dimension F
45.0 mm
Dimension H1
77.8 mm
Dimension H2
77.8 mm
Dimension I
15.1 mm
Dimension L
62.0 mm
End Size
44200 in
End Size 2
44200 in
Orifice Diameter
4 mm
Temperature Rating with Graphite Packing
-53 to 648 ºC
-65 to 1200 ºF
Temperature Rating with Polychlorotrifluoroethylene (PCTFE) Stem Tip
-53 to 93 ºC
-65 to 200 ºF
Temperature Rating with Polyether Ether Ketone (PEEK) Packing
-53 to 315 ºC
-65 to 600 ºF
Temperature Rating with Polytetrafluoroethylene (PTFE) Packing
-54 to 232 ºC
65 to 450 ºF
