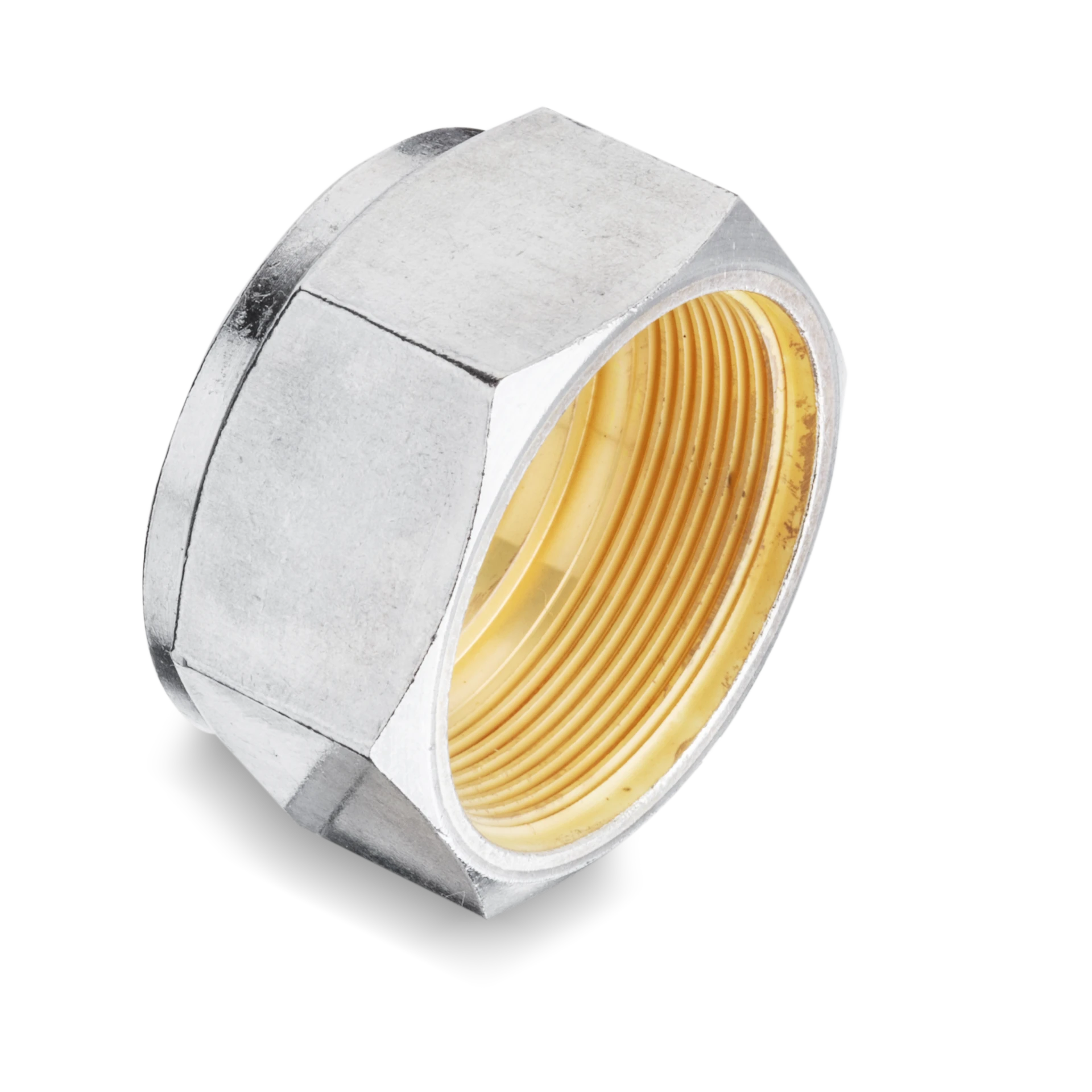

15 Items in SN Nuts
side-scroll to see full table

Part# SN-1 SN-2 SN-3 SN-4 SN-5 SN-6 SN-6M SN-8 SN-8M SN-10 SN-10M SN-12 SN-12M SN-14 SN-14
Information
Type
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Nut
Part Number
SN-1
SN-2
SN-3
SN-4
SN-5
SN-6
SN-6M
SN-8
SN-8M
SN-10
SN-10M
SN-12
SN-12M
SN-14
SN-14
Dimensions
Dimension L
7.90mm
11.93mm
11.93mm
12.7mm
13.50mm
14.22mm
12.7mm
17.3mm
13.50mm
17.52mm
15.10mm
17.52mm
17.50mm
17.52mm
17.52mm
Tube Outside Diameter D
1/16in
- mm
1/8in
- mm
3/16in
- mm
1/4in
- mm
5/16in
- mm
3/8in
- mm
- in
6mm
1/2in
- mm
- in
8mm
5/8in
- mm
- in
10mm
3/4in
- mm
- in
12mm
7/8in
- mm
7/8in
- mm
Width Across Flats h
5/16in
- mm
7/16in
- mm
1/2in
- mm
9/16in
- mm
5/8in
- mm
11/16in
- mm
- in
14mm
7/8in
- mm
- in
16mm
1in
- mm
- in
19mm
1-1/8in
- mm
- in
22mm
1-1/4in
- mm
1-1/4in
- mm
Specifications
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
SN 1/16 in. Tube Outside Diameter D Nut
SN 1/8 in. Tube Outside Diameter D Nut
SN 3/16 in. Tube Outside Diameter D Nut
SN 1/4 in. Tube Outside Diameter D Nut
SN 5/16 in. Tube Outside Diameter D Nut
SN 3/8 in. Tube Outside Diameter D Nut
SN 6 mm Tube Outside Diameter D Nut
SN 1/2 in. Tube Outside Diameter D Nut
SN 8 mm Tube Outside Diameter D Nut
SN 5/8 in. Tube Outside Diameter D Nut
SN 10 mm Tube Outside Diameter D Nut
SN 3/4 in. Tube Outside Diameter D Nut
SN 12 mm Tube Outside Diameter D Nut
SN 7/8 in. Tube Outside Diameter D Nut
SN 7/8 in. Tube Outside Diameter D Nut
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Inch

Part#
