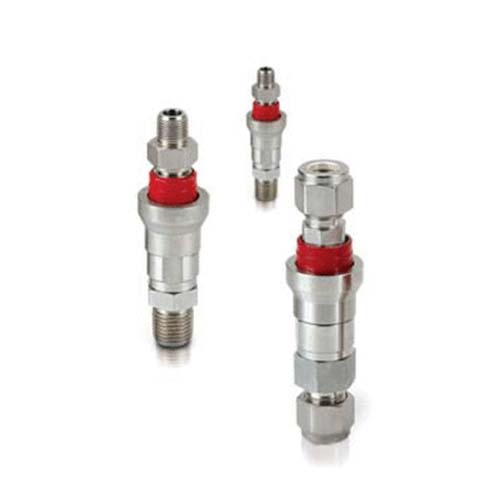

SQC (DESO) Quick Connect Stems
Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
13 Items in SQC (DESO) Quick Connect Stems
side-scroll to see full table
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Part# | SQC1P-F2N-DO | SQC1P-F4N-DO | SQC1P-M2N-DO | SQC1P-M4N-DO | SQC1P-S4-DO | SQC2P-F6N-DO | SQC2P-M4N-DO | SQC2P-M6N-DO | SQC2P-S6-DO | SQC2P-S6-DO-BH | SQC3-M8N-DO | SQC3P-F8N-DO | SQC3P-F8N-DO |
| Information | |||||||||||||
| Type |
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
| Part Number |
SQC1P-F2N-DO
|
SQC1P-F4N-DO
|
SQC1P-M2N-DO
|
SQC1P-M4N-DO
|
SQC1P-S4-DO
|
SQC2P-F6N-DO
|
SQC2P-M4N-DO
|
SQC2P-M6N-DO
|
SQC2P-S6-DO
|
SQC2P-S6-DO-BH
|
SQC3-M8N-DO
|
SQC3P-F8N-DO
|
SQC3P-F8N-DO
|
| Dimensions | |||||||||||||
| Dimension A |
52.6mm
|
58.9mm
|
54.1mm
|
57.9mm
|
61.5mm
|
62.7mm
|
61.9mm
|
62.7mm
|
67.1mm
|
67.1mm
|
77.2mm
|
76.7mm
|
76.7mm
|
| Dimension F |
15.9mm
|
19.1mm
|
15.9mm
|
15.9mm
|
15.9mm
|
22.2mm
|
19.1mm
|
19.1mm
|
19.1mm
|
19.1mm
|
23.8mm
|
27.0mm
|
27.0mm
|
| End Size |
44204in
|
44200in
|
44204in
|
44200in
|
44200in
|
44263in
|
44200in
|
44263in
|
44263in
|
44263in
|
44198in
|
44198in
|
44198in
|
| Flow [Max] |
4gpm
15L/min
|
4gpm
15L/min
|
4gpm
15L/min
|
4gpm
15L/min
|
4gpm
15L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
10gpm
37L/min
|
10gpm
37L/min
|
10gpm
37L/min
|
| Insertion Depth |
1.15in
29.2mm
|
1.15in
29.2mm
|
1.15in
29.2mm
|
1.15in
29.2mm
|
1.15in
29.2mm
|
1.30in
33.0mm
|
1.30in
33.0mm
|
1.30in
33.0mm
|
1.30in
33.0mm
|
1.30in
33.0mm
|
1.68in
42.7mm
|
1.68in
42.7mm
|
1.68in
42.7mm
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature |
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature |
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
103bar
1500psig
|
103bar
1500psig
|
103bar
1500psig
|
103bar
1500psig
|
103bar
1500psig
|
51.6bar
750psig
|
51.6bar
750psig
|
51.6bar
750psig
|
| Spillage |
0.3cm³
|
0.3cm³
|
0.3cm³
|
0.3cm³
|
0.3cm³
|
1.0cm³
|
1.0cm³
|
1.0cm³
|
1.0cm³
|
1.0cm³
|
3.0cm³
|
3.0cm³
|
3.0cm³
|
| Specifications | |||||||||||||
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
| Plug Series |
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
DO
|
| Cv Coefficient |
0.2
|
0.2
|
0.2
|
0.2
|
0.2
|
0.5
|
0.5
|
0.5
|
0.5
|
0.5
|
1.3
|
1.3
|
1.3
|
| Description |
SQC 1/8 in. x 1/8 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
|
SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
|
SQC 1/8 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
|
SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
|
SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Stem (DESO)
|
SQC 3/8 in. x 3/8 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
|
SQC 1/4 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
|
SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
|
SQC 3/8 in. x 3/8 in. Tube Outside Diameter Quick Connect Stem (DESO)
|
SQC 3/8 in. x 3/8 in. Tube Outside Diameter Bulkhead Quick Connect Stem (DESO)
|
SQC 1/2 in. x 1/2 in. Male National Pipe Taper (MNPT) Quick Connect Stem (DESO)
|
SQC 1/2in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
|
SQC 1/2in. x 1/2 in. Female National Pipe Taper (FNPT) Quick Connect Stem (DESO)
|
| End Type |
Female National Pipe Thread (NPT)
|
Female National Pipe Thread (NPT) Pipe Taper (PT)
|
Male National Pipe Thread (NPT)
|
Male National Pipe Thread (NPT) Pipe Taper (PT)
|
-
|
Female National Pipe Thread (NPT) Pipe Taper (PT)
|
Male National Pipe Thread (NPT)
|
Male National Pipe Thread (NPT) Pipe Taper (PT)
|
-
|
-
|
Male National Pipe Thread (NPT) Pipe Taper (PT)
|
Female National Pipe Thread (NPT) Pipe Taper (PT)
|
Female National Pipe Thread (NPT) Pipe Taper (PT)
|
