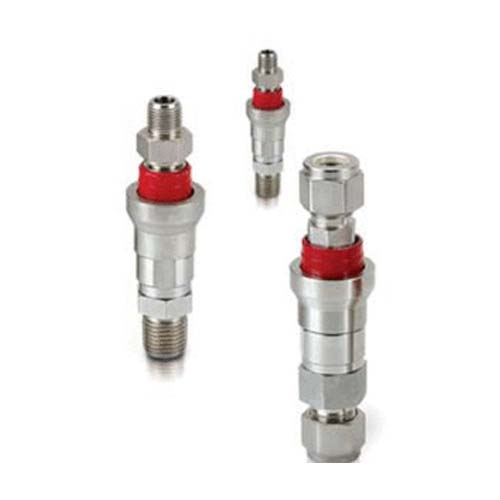

SQC (SESO) Quick Connect Stems
Simple push-pull action to connect and disconnect lines-no tools required. Plug and body are available valved or unvalved. Valves automatically open when connected and shut off when disconnected to minimize the loss of liquids or gases.
8 Items in SQC (SESO) Quick Connect Stems
side-scroll to see full table
|
|
|
|
|
|
|
|
|
| Part# | SQC1P-F4N-SO | SQC1P-M2N-SO | SQC1P-M4N-SO | SQC1P-S4-SO | SQC2P-F4N-SO | SQC2P-M4N-SO | SQC2P-M6N-SO | SQC2P-M6N-SO |
| Information | ||||||||
| Type |
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
Connect Stem
|
| Part Number |
SQC1P-F4N-SO
|
SQC1P-M2N-SO
|
SQC1P-M4N-SO
|
SQC1P-S4-SO
|
SQC2P-F4N-SO
|
SQC2P-M4N-SO
|
SQC2P-M6N-SO
|
SQC2P-M6N-SO
|
| Dimensions | ||||||||
| Dimension F |
19.1mm
|
15.9mm
|
15.9mm
|
15.9mm
|
19.1mm
|
19.1mm
|
22.2mm
|
22.2mm
|
| End Size |
44200in
|
44204in
|
44200in
|
44200in
|
44200in
|
44200in
|
44263in
|
44263in
|
| Flow [Max] |
4gpm
15L/min
|
4gpm
15L/min
|
4gpm
15L/min
|
4gpm
15L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
6gpm
22L/min
|
| Insertion Depth |
1.09in
27.7mm
|
1.09in
27.7mm
|
1.09in
27.7mm
|
1.09in
27.7mm
|
1.18in
30.0mm
|
1.18in
30.0mm
|
1.18in
30.0mm
|
1.18in
30.0mm
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 400 (204 ºC) Temperature |
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
17.2bar
250psig
|
| Pressure Rating 316 Stainless Steel with Fluorocarbon (FKM) O-Ring at 70 (20 ºC) Temperature |
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
206bar
3000psig
|
103bar
1500psig
|
103bar
1500psig
|
103bar
1500psig
|
103bar
1500psig
|
| Spillage |
0.3cm³
|
0.3cm³
|
0.3cm³
|
0.3cm³
|
1.0cm³
|
1.0cm³
|
1.0cm³
|
1.0cm³
|
| Specifications | ||||||||
| Inch/Metric |
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
Inch
|
| Material |
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
316 Stainless Steel, Brass
|
| Plug Series |
SO
|
SO
|
SO
|
SO
|
SO
|
SO
|
SO
|
SO
|
| Cv Coefficient |
0.4
|
0.4
|
0.4
|
0.4
|
1.5
|
1.5
|
1.6
|
1.6
|
| Description |
SQC 1/4 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Stem (SESO)
|
SQC 1/4 in. x 1/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (SESO)
|
SQC 1/4in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (SESO)
|
SQC 1/4 in. x 1/4 in. Tube Outside Diameter Quick Connect Stem (SESO)
|
SQC 3/8 in. x 1/4 in. Female National Pipe Taper (FNPT) Quick Connect Stem (SESO)
|
SQC 3/8 in. x 1/4 in. Male National Pipe Taper (MNPT) Quick Connect Stem (SESO)
|
SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (SESO)
|
SQC 3/8 in. x 3/8 in. Male National Pipe Taper (MNPT) Quick Connect Stem (SESO)
|
| End Type |
Female National Pipe Thread (NPT) Pipe Taper (PT)
|
Male National Pipe Thread (NPT)
|
Male National Pipe Thread (NPT) Pipe Taper (PT)
|
-
|
Female National Pipe Thread (NPT) Pipe Taper (PT)
|
Male National Pipe Thread (NPT)
|
Male National Pipe Thread (NPT) Pipe Taper (PT)
|
Male National Pipe Thread (NPT) Pipe Taper (PT)
|
