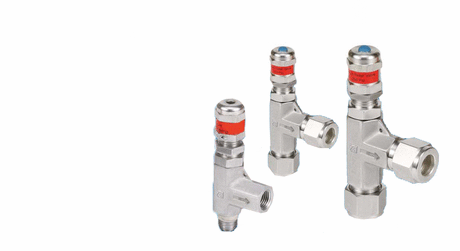

SRVH Springs for SRVH High Pressure Relief Valves

SRVL/SRVH Relief Valves - 2

7 Items in SRVH Springs for SRVH High Pressure Relief Valves

	Item #	Item Name
	SRVH-KIT-B Brown Spring for 2250 to 3000 psi High Pressure Relief Valves	Brown Spring for 2250 to 3000 psi High Pressure Relief Valves
	SRVH-KIT-G Green Spring for 5000 to 6000 psi High Pressure Relief Valves	Green Spring for 5000 to 6000 psi High Pressure Relief Valves
	SRVH-KIT-O Orange Spring for 1500 to 2250 psi High Pressure Relief Valves	Orange Spring for 1500 to 2250 psi High Pressure Relief Valves
	SRVH-KIT-P Purple Spring for 750 to 1500 psi High Pressure Relief Valves	Purple Spring for 750 to 1500 psi High Pressure Relief Valves
	SRVH-KIT-R Red Spring for 4000 to 5000 psi High Pressure Relief Valves	Red Spring for 4000 to 5000 psi High Pressure Relief Valves
	SRVH-KIT-W White Spring for 3000 to 4000 psi High Pressure Relief Valves	White Spring for 3000 to 4000 psi High Pressure Relief Valves
	SRVH-KIT-Y Yellow Spring for 225 to 750 psi High Pressure Relief Valves	Yellow Spring for 225 to 750 psi High Pressure Relief Valves

side-scroll to see full table

Information

Part#	SRVH-KIT-B	SRVH-KIT-G	SRVH-KIT-O	SRVH-KIT-P	SRVH-KIT-R	SRVH-KIT-W	SRVH-KIT-W
Type	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves
Part Number	SRVH-KIT-B	SRVH-KIT-G	SRVH-KIT-O	SRVH-KIT-P	SRVH-KIT-R	SRVH-KIT-W	SRVH-KIT-W
Dimensions
Cracking Pressure Range	155 to 206bar 15500 to 20600kPa 2250 to 3000psig	344 to 414bar 34400 to 41400kPa 5000 to 6000psig	103 to 155bar 10300 to 15500kPa 1500 to 2250psig	51.5 to 103bar 5150 to 10300kPa 750 to 1500psig	275 to 344bar 27500 to 34400kPa 4000 to 5000psig	206 to 275bar 20600 to 27500kPa 3000 to 4000psig	206 to 275bar 20600 to 27500kPa 3000 to 4000psig
Operating Pressure [Max]	413bar 6000psig	413bar 6000psig	413bar 6000psig	413bar 6000psig	413bar 6000psig	413bar 6000psig	413bar 6000psig
Specifications
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Description	Brown Spring for 2250 to 3000 psi High Pressure Relief Valves	Green Spring for 5000 to 6000 psi High Pressure Relief Valves	Orange Spring for 1500 to 2250 psi High Pressure Relief Valves	Purple Spring for 750 to 1500 psi High Pressure Relief Valves	Red Spring for 4000 to 5000 psi High Pressure Relief Valves	White Spring for 3000 to 4000 psi High Pressure Relief Valves	White Spring for 3000 to 4000 psi High Pressure Relief Valves
Spring Color	Brown	Green	Orange	Purple	Red	White	White
