18 Items in SUE 90 Degree Union Elbows
Item # Item Name
SUE 1/16 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 5/16 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 3/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 6 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 1/2 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 8 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 5/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 10 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 3/4 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 12 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 7/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 18 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 1-1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1-1/2 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 2 in. Tube Outside Diameter D 90 Degree Union Elbow
side-scroll to see full table

Part# SUE-1 SUE-2 SUE-4 SUE-5 SUE-6 SUE-6M SUE-8 SUE-8M SUE-10 SUE-10M SUE-12 SUE-12M SUE-14 SUE-16 SUE-18M SUE-20 SUE-24 SUE-24
Information
Type
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Union Elbows
Part Number
SUE-1
SUE-2
SUE-4
SUE-5
SUE-6
SUE-6M
SUE-8
SUE-8M
SUE-10
SUE-10M
SUE-12
SUE-12M
SUE-14
SUE-16
SUE-18M
SUE-20
SUE-24
SUE-24
Dimensions
Angle
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º
90º

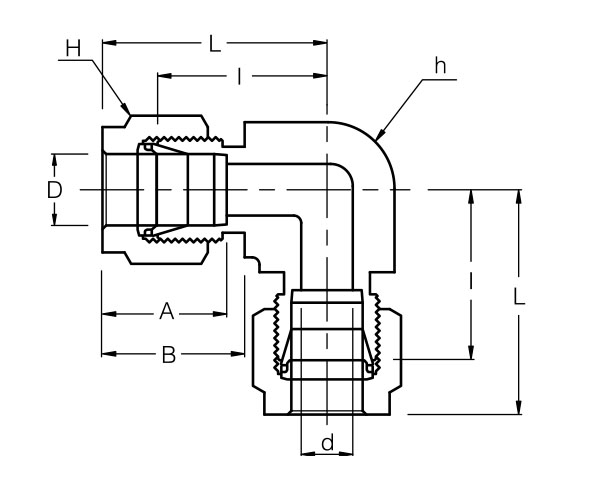

Dimension A
8.63mm
12.70mm
15.24mm
16.25mm
16.76mm
15.3mm
22.86mm
16.2mm
24.38mm
17.2mm
24.38mm
22.8mm
25.90mm
31.24mm
24.4mm
41.15mm
50.04mm
50.04mm
Dimension B
8.63mm
12.70mm
15.24mm
16.25mm
16.76mm
17.7mm
22.86mm
18.6mm
24.38mm
19.5mm
24.38mm
22.0mm
25.90mm
31.24mm
22.0mm
41.15mm
50.04mm
50.04mm
Dimension I
14.00mm
15.74mm
20.10mm
22.35mm
23.11mm
19.6mm
25.90mm
22.4mm
27.94mm
23.9mm
29.71mm
25.90mm
34.54mm
36.83mm
29.7mm
44.45mm
50.80mm
50.80mm
Dimension L
18.03mm
22.35mm
27.40mm
29.71mm
30.48mm
27.0mm
36.06mm
29.9mm
38.1mm
31.50mm
39.87mm
36.0mm
44.70mm
49.02mm
39.8mm
66.55mm
77.98mm
77.98mm
Dimension d [Min]
1.27mm
2.28mm
4.82mm
6.35mm
7.11mm
4.8mm
10.41mm
6.4mm
12.70mm
7.9mm
15.74mm
9.5mm
18.28mm
22.35mm
15.1mm
27.69mm
34.04mm
34.04mm
Tube Outside Diameter D
1/16in
- mm
1/8in
- mm
1/4in
- mm
5/16in
- mm
3/8in
- mm
- in
6mm
1/2in
- mm
- in
8mm
5/8in
- mm
- in
10mm
3/4in
- mm
- in
12mm
7/8in
- mm
1in
- mm
- in
18mm
1 1/4in
- mm
1 1/2in
- mm
1 1/2in
- mm
Width Across Flats H
5/16in
- mm
7/16in
- mm
9/16in
- mm
5/8in
- mm
11/16in
- mm
- in
14mm
7/8in
- mm
- in
16mm
1in
- mm
- in
19mm
1-1/8in
- mm
- in
22mm
1-1/4in
- mm
1-1/2in
- mm
- in
30mm
1-7/8in
- mm
2-1/4in
- mm
2-1/4in
- mm
Width Across Flats h
3/8in
- mm
3/8in
- mm
1/2in
- mm
5/8in
- mm
5/8in
- mm
- in
12.7mm
13/16in
- mm
- in
15.9mm
15/16in
- mm
- in
17.5mm
1-1/16in
- mm
- in
20.6mm
1-3/8in
- mm
1-3/8in
- mm
- in
27.0mm
1-11/16in
- mm
2in
- mm
2in
- mm
Specifications
Material
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
316 Stainless Steel
Description
SUE 1/16 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 5/16 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 3/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 6 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 1/2 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 8 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 5/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 10 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 3/4 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 12 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 7/8 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 18 mm Tube Outside Diameter D 90 Degree Union Elbow
SUE 1-1/4 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1-1/2 in. Tube Outside Diameter D 90 Degree Union Elbow
SUE 1-1/2 in. Tube Outside Diameter D 90 Degree Union Elbow
Inch/Metric
Inch
Inch
Inch
Inch
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Metric
Inch
Inch
Metric
Inch
Inch
Inch

Part#

CAD Download Part #
