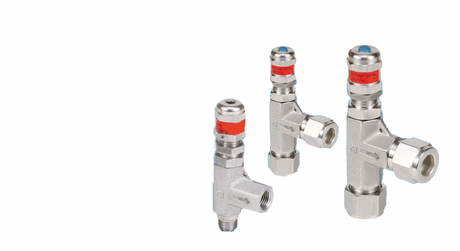

SRVL Low Pressure Relief Valves

	Item #	Item Name
	SRVL-MF-4N SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve
	SRVL-MF-4N-KZ SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, FFKM (Perfluoroelastomer) O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, FFKM (Perfluoroelastomer) O-Ring, 300 psi Low Pressure Relief Valve
	SRVL-MF-4N-N SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve
	SRVL-MF-8N SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve	SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve
	SRVL-MF-8N-N SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve
	SRVL-S-4 SRVL 1/4 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
	SRVL-S-4-N SRVL 1/4 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
	SRVL-S-6 SRVL 3/8 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve	SRVL 3/8 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve
	SRVL-S-6-N SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
	SRVL-S-8 SRVL 1/2 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve	SRVL 1/2 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve

side-scroll to see full table

Information

Part#	SRVL-MF-4N	SRVL-MF-4N-KZ	SRVL-MF-4N-N	SRVL-MF-8N	SRVL-MF-8N-N	SRVL-S-4	SRVL-S-4-N	SRVL-S-6	SRVL-S-6-N	SRVL-S-6-N
Type	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves	High Pressure Relief Valves
Part Number	SRVL-MF-4N	SRVL-MF-4N-KZ	SRVL-MF-4N-N	SRVL-MF-8N	SRVL-MF-8N-N	SRVL-S-4	SRVL-S-4-N	SRVL-S-6	SRVL-S-6-N	SRVL-S-6-N
Dimensions
Cracking Pressure Range	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig	0.69 to 17.2bar 10.0 to 250psig
Dimension H	99.5mm	99.5mm	99.5mm	103.0mm	103.0mm	104.6mm	104.6mm	111.7mm	111.7mm	111.7mm
Dimension L1	30.0mm	30.0mm	30.0mm	38.0mm	38.0mm	38.7mm	38.7mm	44.4mm	44.4mm	44.4mm
Dimension L2	32.2mm	32.2mm	32.2mm	35.7mm	35.7mm	37.3mm	37.3mm	44.4mm	44.4mm	44.4mm
End Size	44200mm	44200mm	44200mm	44198mm	44198mm	44200mm	44200mm	44263mm	44263mm	44263mm
End Size 2	44200mm	44200mm	44200mm	44198mm	44198mm	44200mm	44200mm	44263mm	44263mm	44263mm
Operating Pressure [Max]	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig	20.6bar 300psig
Orifice	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm	4.8mm
Specifications
Inch/Metric	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch	Inch
Material	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Series	SRVL	SRVL	SRVL	SRVL	SRVL	SRVL	SRVL	SRVL	SRVL	SRVL
Description	SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, FFKM (Perfluoroelastomer) O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, 300 psi Low Pressure Relief Valve	SRVL 1/2 in. Male National Pipe Taper (MNPT) Thread x Female National Pipe Taper (FNPT) Thread, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve	SRVL 1/4 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 3/8 in. Outside Diameter, Angle Pattern, 300 psi Low Pressure Relief Valve	SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve	SRVL 3/8 in. Outside Diameter, Angle Pattern, Buna N O-Ring, 300 psi Low Pressure Relief Valve
End Type	Male National Pipe Thread (NPT)	Male National Pipe Thread (NPT)	Male National Pipe Thread (NPT)	Male National Pipe Thread (NPT)	Male National Pipe Thread (NPT)	-	-	-	-	-
End Type 2	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	Female National Pipe Thread (NPT)	-	-	-	-	-
